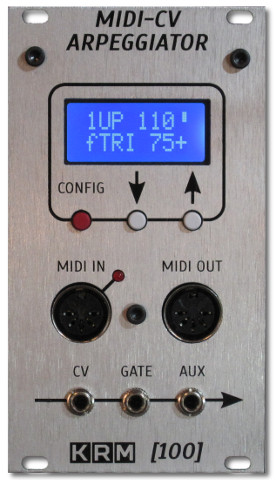

[KRM-100] MIDI-CV-Arpeggiator Module

[KRM-100] MIDI-CV-Arpeggiator

[KRM-100] MIDI-CV-Arpeggiator

[KRM-100] MIDI-CV-Arpeggiator

[KRM-100] MIDI-CV-Arpeggiator

Update the Functionality of your Eurorack Modular

The [KRM-100] MIDI-CV-Arpeggiator module updates your Eurorack modular with an arpeggiator, mini sequencer, additional LFO, portamento, multi-trigger, aux CV source, and other functions that modern electronic music producers expect.

Use the mini sequencer to program your own arpeggiator pattern, or select one of the 7 built-in ones. Modulate the pitch or aux CV with with the built-in LFO (9 different waveforms). The arpeggiator, mini sequencer, and LFO can be synced via MIDI.

For fine performance control, map MIDI velocity or pressure to the aux CV value, or the LFO modulation channel. In addition, there are two types of portamento (constant rate, and constant time), to match your playing style.

On Screen Display

[KRM-100] On-Screen Display

[KRM-100] On-Screen Display

[KRM-100] Display Detail

[KRM-100] Display Detail

See the status of all functions at a glance, on the bright LCD display. The speed of the arpeggiator and LFO are also shown graphically in an animated loop.

Break Out

[KRM-100] Hz/volt

[KRM-100] Hz/volt

Break out of your modular, to other analog gear. In addition to the Eurorack standard (1 V/oct, V-trig), the [KRM-100] supports Hz/volt, 1.2 V/oct, and 0.32 V/oct (for EMS) pitch standards. Gates can be configured as S-Trig or V-Trig, with a low (5 volt) or high voltage (12 volt) gate.

Don't forget about your MIDI synths! The arpeggiator output is also echoed on the MIDI out jack. That's right, you can chain the arpeggiator to other MIDI devices, at the same time you are driving your modular via CV and gate. Note velocity, pitch bend, and mod wheel messages can be sent as well.

MIDI Control, And Then Some

The [KRM-100] has an extensive list of real-time performance controls (20 in total). Now you can use all of those buttons and knobs on your MIDI controller, to get the most out of your modular. You don't need to go into a menu to change the LFO wave shape (or most other parameters). Simply turn a MIDI knob on your controller, while you are playing!

In addition, there are 42 configuration parameters that allow you to tailor the MIDI messages between the [KRM-100] and your MIDI keyboard or other devices.

[KRM-100] Gate

[KRM-100] Gate

[KRM-100] LFO Phase

[KRM-100] LFO Phase

[KRM-100] Mod Mapping

[KRM-100] Mod Mapping

[KRM-100] Portamento

[KRM-100] Portamento

Real-Time MIDI Control

  • Arpeggiator On/Off
  • Arpeggiator Note Latch On/Off
  • Arpeggiator Pattern Select (7 built-in, plus mini-sequencer)
  • Custom Arpeggiator Pattern Record
  • Arpeggiator MIDI Clock Sync On/Off
  • Arpeggiator Speed and MIDI Beat Quantization
  • Arpeggiator Gate Width
  • Aux CV (Filter) Control
  • LFO MIDI Clock Sync On/Off
  • LFO Speed and MIDI Beat Quantization
  • LFO Waveshape Select (9 waveshapes)
  • LFO Phase
  • LFO Key-down Restart On/Off
  • MOD Wheel Mapping (pitch or aux CV)
  • MOD Wheel Bend Range (in semitones, when in pitch mode)
  • Pitch Wheel Bend Range (in semitones)
  • Portamento On/Off
  • Portamento Mode (constant speed, or constant rate)
  • Portamento Speed

Arp/Sequencer and LFO MIDI Sync

  • 4 Whole Notes
  • 3 Whole Notes
  • 2 Whole Notes
  • Whole Note
  • Half Note
  • Half Note Triplet
  • Quarter Note
  • Quarter Note Triplet
  • Eighth Note
  • Eighth Note Triplet
  • Sixteenth Note
  • Sixteenth Note Triplet
  • Thirty-second Note
  • Thirty-second Note Triplet

LFO Waveshapes

  • Triangle
  • Saw
  • Inverted Saw
  • Square
  • 40% Pulse
  • 30% Pulse
  • 20% Pulse
  • 10% Pulse
  • Random

Custom Tuning Table for Fine-Tuning, or Microtonal Scales

[KRM-100] Custom Tuning

[KRM-100] Custom Tuning

Do you have a DIY VCO that doesn't conform to the standard V/octave or Hz/volt tuning systems? Do you want to experiment with microtonal scales?

In addition to the standard tuning curves, the [KRM-100] has a dedicated custom tuning table. Each semitone in this table can be fine-tuned to match your VCO response, or to create any arbitrary scale.

The custom tuning table can be toggled on and off, to quickly switch between standard and custom tuning.

Technical Specifications

Technical Specifications

  • Eurorack format 14HP.
  • Requires +12 V (45 mA) and -12V (10 mA).
  • 5-pin DIN MIDI input and output.
  • 0 to 5 V output for pitch and aux CV.
  • 1V/oct, 1.2V/oct, 0.32V/oct, or Hz/V pitch CV response.
  • 16-bit DAC.
  • S-Trig or V-Trig gate.
  • 5 V or 12 V gate output.

Documentation

[KRM-100] MIDI-CV-Arpeggiator Manual 1.4 MB

Purchase via PayPal

USD$275 Shipping Included, Anywhere In The World

Also available at Moog Audio in Toronto Canada (in-store only)

Warranty

The [KRM-100] MIDI-CV-Arpeggiator module comes with a 90 day replacement or refund warranty valid only for original parts and workmanship, and does not apply to products which have been subject to misuse. The warranty period starts at the product delivery date.

[KRM-100] MIDI-CV-Arpeggiator Module - Demo

[KRM-100] MIDI-CV-Arpeggiator Module - Demo

Alternate Tunings With The [KRM-100] MIDI-CV-Arpeggiator

Alternate Tunings With The [KRM-100] MIDI-CV-Arpeggiator
